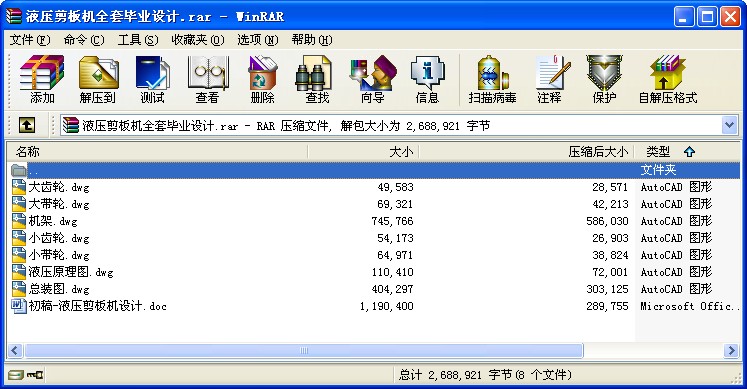

液壓剪板機全套畢業設計
摘要
近年來工業技術的高速發展，促使鋼鐵行業中剪板機的應用非常廣泛，本文通過分析現狀和實地考察，選擇了優勢比較大的閘式剪板機作為研究對象，設計了一種對稱傳動的剪板機，沖剪力為12噸，滑塊的行程為22mm，每分鐘剪切10次。由電動機提供動力，經過一級帶傳動和二級齒輪傳動減速。設計中采用的執行機構為對心曲柄滑塊機構，這一機構將剪板機傳動系統的旋轉運動轉變?yōu)榛瑝K的往復直線運動，實現對板料的剪切。曲柄滑塊機構具有結構簡單、加工容易、維修方便、經濟實用的優點，在機械設備中應用廣泛。在設計過程中，通過對各種剪板機的性能，實用性、經濟的對比體現了閘式剪板機的優點，完成了傳動機構的設計，剪切力的計算，強度，剛度的校核。
關鍵詞：運動仿真，曲柄滑塊，剪板機；
Abstract
The design of symmetric transmission shears, shear-to 10 tons, the itinerary for the slider 22 mm per 30 minutes shear. Powered by the motor through a belt drive and a slowdown Gear. Design of the implementation agencies right mind crank slider, This will shears transmission rotation slider into the reciprocating linear motion, the realization of the right of sheet metal shear. Crank slider is simple in structure, easy processing, easy to maintain and repair, economic and practical advantages in machinery, equipment widely used. The design, right through the plane crank slider mathematical modeling, Turbor C programming, input slider crank agencies that such remarks parameters and the parameters of the whole movement of the simulation process.
Key words: Motion simulation，Crank and slide block,Cutting machine;
